Göpel MultiLine Assist - Inline AOI system for THT placement inspection

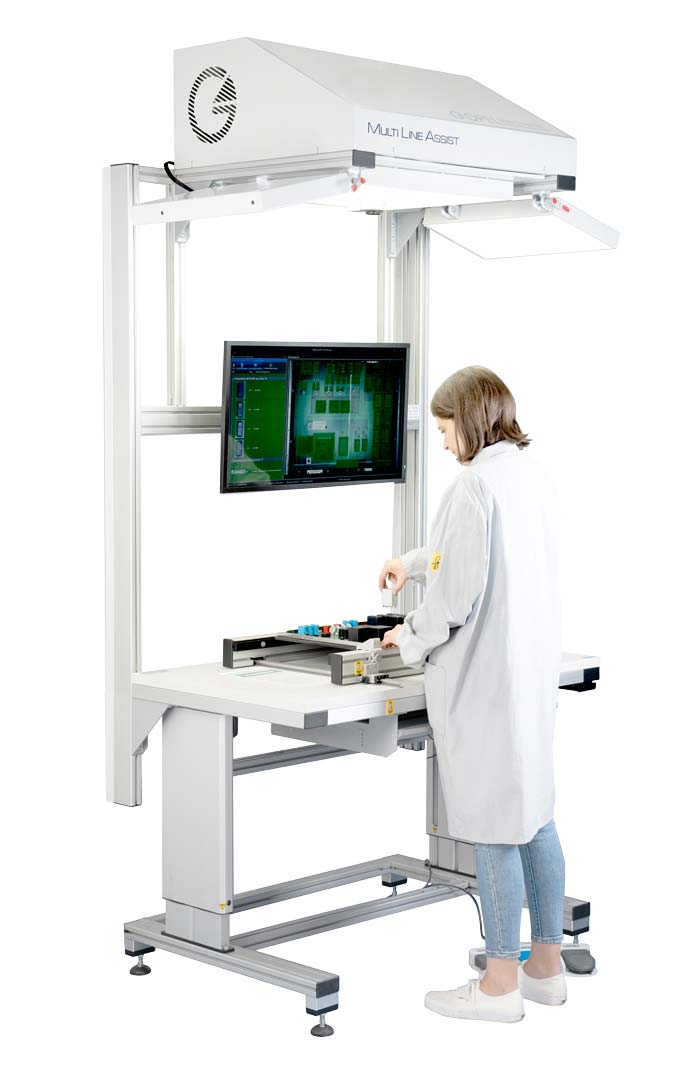

GOEPPEL Multi Line Assist – Assembly Assistance & Inspection for THT Stations

Visual Worker Guidance • Real-Time Camera Monitoring • MagicLight Technology • MES Integration

Overview

Multi Line Assist is an intelligent assembly assistance and inspection system for THT assembly stations. It combines visual worker guidance via projection with permanent real-time optical monitoring using a camera, significantly increasing assembly quality and efficiency.

Key Features

Visual worker guidance by projecting information directly into the operator’s field of vision
Permanent real-time optical monitoring with camera
Three different image field sizes and resolutions available
MagicLight technology for perfect illumination and minimal interference
Connection to MES systems for full traceability
Completeness check, position, colour and polarity recognition (OCR)

Technical Specifications

			Category
			Item
			Specification


			Illumination
			—
			MagicLight LED top & side lighting, 4000 K


			Camera
			—
			47 megapixels, colour


			Field of View
			—
			660×450 mm / 475×320 mm / 300×200 mm


			Max. Inspection Height
			—
			100 mm


			Projector
			—
			Full HD DLP laser projection unit


			Monitor
			—
			24" or 32"


			Dimensions
			—
			Depending on configuration


Category	Item	Specification
Illumination	—	MagicLight LED top & side lighting, 4000 K
Camera	—	47 megapixels, colour
Field of View	—	660×450 mm / 475×320 mm / 300×200 mm
Max. Inspection Height	—	100 mm
Projector	—	Full HD DLP laser projection unit
Monitor	—	24" or 32"
Dimensions	—	Depending on configuration
