Göpel BasicLine 3D AOI

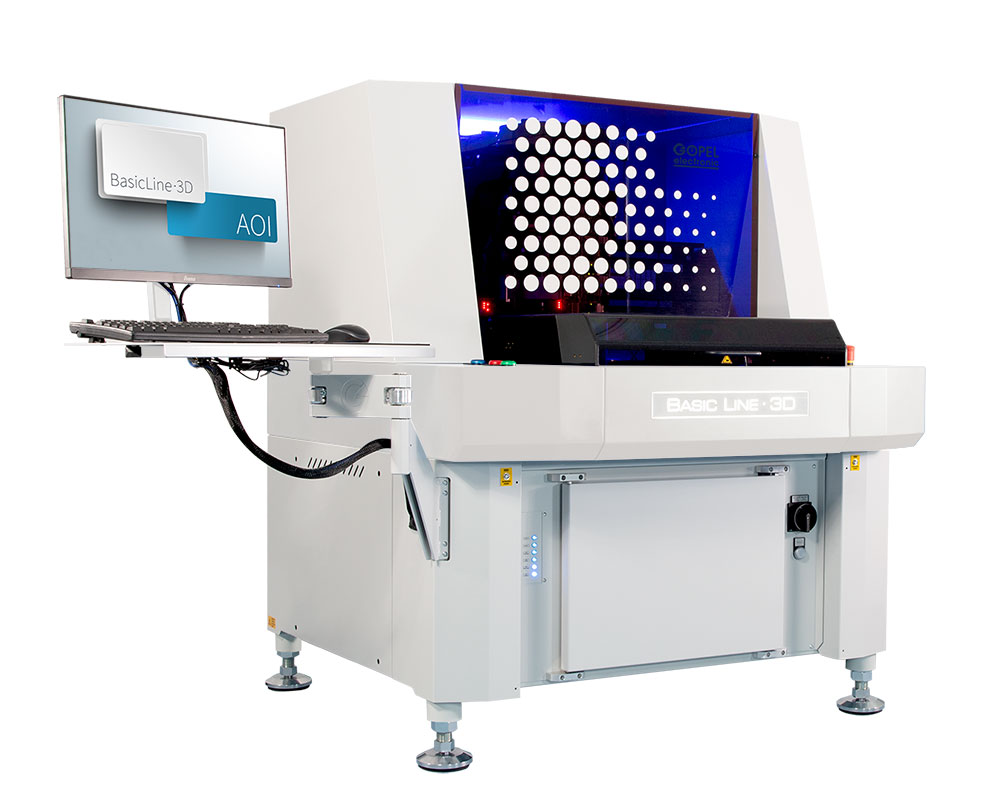

GOEPPEL Basic Line / Basic Line·3D – 2D/3D/360° Stand-Alone AOI System

Flexible Stand-Alone AOI • AI-based MagicClick Programming • 3D·ViewZ Camera Module • Maximum Fault Detection

Overview

The Basic Line / Basic Line·3D is a flexible stand-alone AOI system offering maximum fault detection through the combination of 2D, 3D and 360° angled-view inspection technologies. With automated AI-based test program generation (MagicClick) and the optional 3D·ViewZ camera module, it provides outstanding ease of use and inspection reliability.

Key Features

Flexible stand-alone AOI with combined 2D/3D/360° technologies
Automated AI-based test program generation with MagicClick
3D·ViewZ camera module with angled-view and rotation drive (optional)
Excellent image quality with orthogonal and angled-view cameras
Unique multi-spectral / multi-directional illumination
Variable system configurations and data interfaces for easy integration
Can be used for 3D solder paste inspection (SPI)

Technical Specifications

			Category
			Item
			Specification


			Inspection Area
			—
			510 × 350 mm (500 mm optional)


			Component Clearance
			Above PCB
			40 mm


			Component Clearance
			Below PCB
			100 mm


			Camera
			Orthogonal
			Up to 48 MP, 24 bit color depth


			Angled-View
			—
			Up to 360° with adapted focal plane


			3D Measurement
			—
			With 3D·ViewZ module


			Dimensions (W×D×H)
			—
			1133 × 1142 × 1430 mm


			Weight
			—
			Approx. 490 kg


Category	Item	Specification
Inspection Area	—	510 × 350 mm (500 mm optional)
Component Clearance	Above PCB	40 mm
Component Clearance	Below PCB	100 mm
Camera	Orthogonal	Up to 48 MP, 24 bit color depth
Angled-View	—	Up to 360° with adapted focal plane
3D Measurement	—	With 3D·ViewZ module
Dimensions (W×D×H)	—	1133 × 1142 × 1430 mm
Weight	—	Approx. 490 kg
