BOREY XJ-10 SMT pick&place machine

Borey XJ10 – High-Speed Linear Motor SMT Pick and Place Machine

40,000 CPH • Full Linear Motor Drive • Dual Y-Axis • 88 Intelligent Feeders

Overview

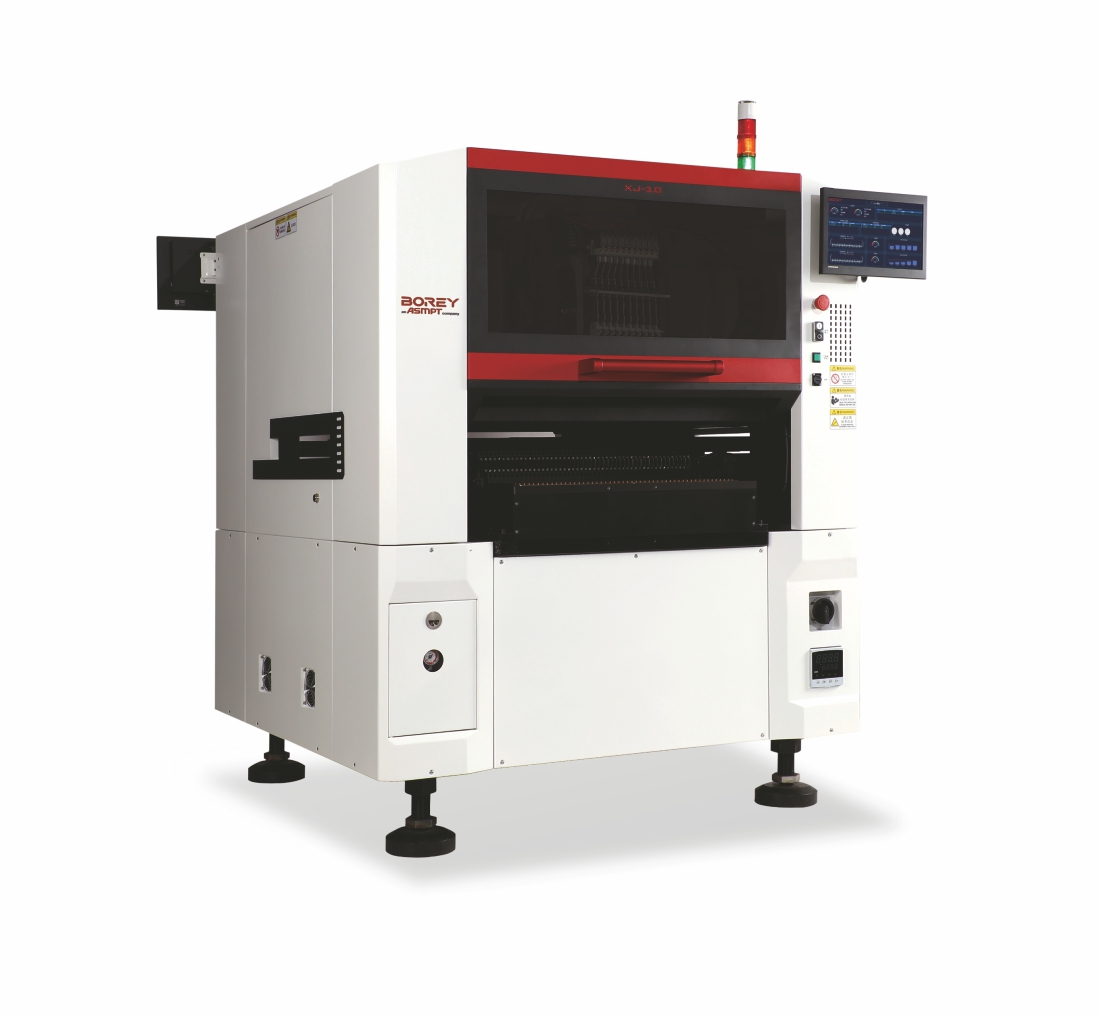

Borey XJ10 high-speed SMT pick and place machine

The XJ10 is a professional, high-end fully automatic SMT chip mounter designed for high-speed and high-precision placement. With its robust all-cast frame, advanced linear motor technology and closed-loop control system, it is the ideal solution for medium to high-volume production of smartphones, laptops, automotive electronics, industrial control boards and other demanding applications.

Key Features

All-cast machine body – Extremely rigid structure with minimal vibration at high speeds
Full linear motor drive:
- X-axis: Linear motor
- Y-axis: Dual Linear Motors
- Z-axis: High-precision servo motor
Fully closed-loop control with real-time feedback
Advanced motion control algorithms for continuous high-speed operation
88 intelligent electric feeders
Excellent price/performance ratio in the high-speed class

Why Choose Borey XJ10?

Superior stability thanks to cast frame and dual linear Y-axis
High placement speed and excellent accuracy
Ideal for medium to high-volume professional SMT production
Reliable closed-loop system and intelligent feeders

Technical Specifications

Parameter	Specification
PCB Size	Min: 50×50 mm Max: 430×380 mm
PCB Thickness	0.5 – 3 mm
Component Range	0201 chips ~ L30×W30×H10 mm
Placement Accuracy	±0.05 mm (X/Y)
Placement Speed	40,000 CPH (optimal)
Feeder Capacity	88 feeders (8 mm tape)
Feeder Type	Electric intelligent feeders
Power Supply	AC 380/420/480 V, 3.5 kVA
Air Pressure	0.55 MPa, 150 L/min
Machine Dimensions	1310 × 1310 × 1575 mm (L×W×H)
Machine Weight	Approx. 1600 kg
