INTEON ProVision 4K – Digital Microscope with 360° Angle View Mode
2026.06.03.

Precision. Clarity. Flexibility.

Overview

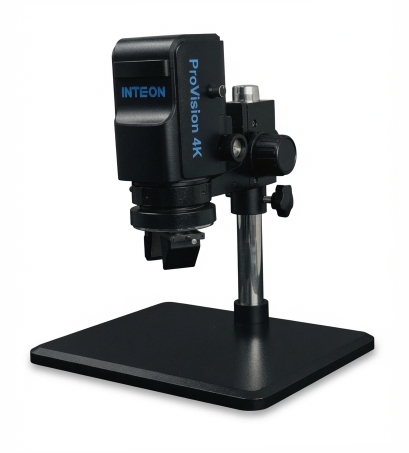

INTEON ProVision 4K Digital Microscope

In today’s demanding electronics manufacturing and quality control environments, precision, speed, and image clarity are essential. The INTEON ProVision 4K is a high-performance true 4K digital microscope that meets these requirements with advanced features and outstanding usability.

Superior Image Quality

Equipped with a 1/1.8-inch Sony sensor, the ProVision 4K delivers stunning true 4K resolution (3840 × 2160 @ 60 FPS). The combination of high-resolution imaging, continuous optical zoom (0.7X – 5.0X), and digital magnification up to 230X ensures every detail is clearly visible.

Key Intelligent Features

  • Fast Autofocus with Auto Edge Detection – Instantly sharp images with automatic edge highlighting
  • Seamless 2D / 3D Mode Switching – Quick toggle for better depth perception
  • Built-in Measurement Tools – Perform accurate measurements directly on the screen
  • Photo & Video Recording with Split Screen Comparison
  • Direct USB Flash Drive Storage – Save files without a computer
  • Built-in Adjustable LED Ring Light
  • ESD Safe certified for sensitive electronics environments

Innovative 360° Angle View Mode

One of the most powerful features of the ProVision 4K is the 360° Angle View Mode. This allows operators to inspect components from virtually any angle without moving the sample or the microscope. It is particularly valuable when inspecting complex assemblies, connectors, solder joints, and hard-to-reach areas.

Technical Specifications

Parameter Specification
Image Quality 3840 × 2160 @ 60 FPS (True 4K)
Sensor 1/1.8 inch Sony Sensor
Output Interface HDMI + UVC-USB 3.0
Optical Magnification 0.7X – 5.0X (Continuous Zoom)
Digital Magnification Up to 230X
Storage Direct USB Flash Drive Storage
Base Metal, 320 × 260 × 20 mm
Column Height 280 mm
Light Source Built-in Adjustable LED Ring Light
Special Features Autofocus, 2D/3D Switching, Measurement, 360° Angle View Mode

Ideal Applications

The INTEON ProVision 4K is the perfect solution for:

  • Electronics manufacturing and assembly lines
  • PCB inspection and rework stations
  • Quality control and assurance departments
  • Research & development laboratories
  • Technical education and training centers

Conclusion

The INTEON ProVision 4K represents a significant advancement in digital microscopy. By combining ultra-high 4K resolution, smart automation features, and the unique 360° angle view capability, it helps manufacturers and technicians achieve higher quality standards while significantly improving productivity and inspection accuracy.

Ready to upgrade your inspection capabilities?

Contact us today to schedule a live demonstration or request a detailed quote.

Source: INTEON Official Materials • June 2026
