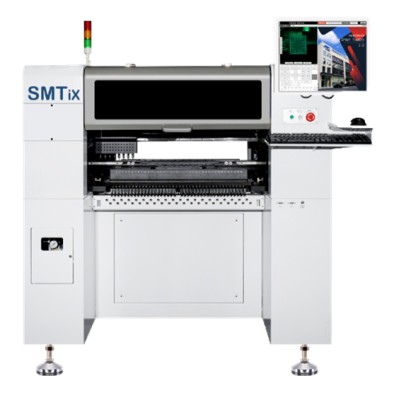

The SMT MS8L 96 NX is an in-line SMD Pick & Place system.
It is the most efficient in its category in placement, programming speed and feeder capacity.
It can accommodate up to 96 NXT type feeders.
The placement accuracy is 0.05mm with a maximum capacity of 16,000 components per hour, making it an ideal machine for producing small series.
2 reels support trolleys are supplied with the machine
HIGHLIGHTS
Placement speed and feeder capacity
The machine is supplied with 10 cameras: 1 for fiducial detection, 8 high-speed cameras for placement nozzles and a high-precision camera for chips
Works under Windows® environment
The software integrates a component library
The software optimizes loading and routing automatically
|
Model |
MS8L 96 NX |
|
Placement accuracy |
0.05mm |
|
Repeatability Accuracy |
0.05mm |
|
Positioning accuracy |
0.01mm |
|
Continuous operating time |
Can operate continuously for >24 hours without stopping |
|
Placement speed |
16000pcs/h |
|
Vision speed |
12000-15000pcs/h |
|
Placement area |
460*350 mm without tray -- 50*50 mm |
|
|
460*233 mm with tray -- 50*50 mm |
|
Placement range |
Compatible with components of type 0201, 0402, 0603, 0805, 1206, LEDs, diodes, transistors, SOT, and BGA up to 30*30 mm. For components with a pin pitch greater than 0.3 mm, such as GFP, BGA, etc., placement of non-standard components is possible with visual customization. |
|
Placement head system
|
Number of placement heads |
8 |
|
|
Nozzle types |
Compatible with JUKI nozzles |
|
|
Component angle range |
±180° |
|
|
Maximum component height |
=20mm |
|
|
Pickup method |
Simultaneous multi-head pickup |
|
|
Nozzle stroke range |
4.5mm |
|
|
Maximum Z-axis travel |
50mm |
|
Feeding System |
feeder positions |
96 positions (based on 8 mm feeders) |
|
|
Feeder type |
Electric feeders, vibrating feeders, IC trays, etc. |
|
|
Compatible feeder types |
NXT feeders |
|
|
IC tray positions |
3 trays (286 positions) |
|
|
IC tray dimensions |
L650*W170mm |
|
|
Safety system |
Feeder lift alarm function |
|
|
Loading method |
Automatic material distribution, with automatically located pickup coordinates |
|
PCB Conveyor System |
PCB thickness |
=3 mm; in automatic mode, a processing border of 3-5 mm is required |
|
|
Track adjustment method |
Manual/electric automatic adjustment |
|
|
Transport mode |
Default from left to right, supports connection on both sides, with three-stage transport |
|
|
Safety system |
Antistatic conveyor, board transfer sensors, supports MES signals |
|
Air System |
Vacuum source |
Vacuum pump |
|
|
Vacuum mechanism |
High-speed vacuum break valve |
|
|
Air pressure |
0,5-0,7 MPa |
|
|
Air source requirements |
Oil-water separation device, requires external connection of = 60 L, dust filtration, and air pressure stabilization device |
|
Motion Control and Programming System |
Operating system |
Windows-based, with proprietary intelligent system developed by Huawei Guo Chuang |
|
|
Control unit |
Industrial PC with high-performance Intel processor |
|
|
Drive system |
High-speed DSP drive, AC servo motor |
|
|
Safety system |
Emergency stop button, tri-colour alarm light, slow/stop recognition upon cover opening |
|
|
Maximum XY-axis travel (single side) |
440 mm × 740 mm |
|
|
XY guide rail |
Linear guide rail + precision ball screw |
|
|
XY motion mode |
Optimized curve acceleration/deceleration, linear interpolation linkage, integrated interpolation algorithm |
|
|
Motion protection |
High-durability cable carriers and flexible cables |
|
Recognition System |
Recognition equipment |
1 fiducial positioning camera, 8 high-speed recognition cameras, 1 high-precision camera |
|
|
Monitor |
17-inch industrial control display |
|
|
Image capture method |
Centring visual recognition |
|
|
Recognition method |
Simultaneous recognition and pickup by 8 heads |
|
|
Fiducial Recognition |
Manual/automatic positioning |
|
|
Correction Functions |
Automatic missing component correction, automatic component angle correction, automatic invalid component rejection |
|
|
Programming method |
Pick&place file import, synchronized with the component library, optimal trajectory planning, optimal path planning |
|
|
Compatible file formats |
CSV/TXT files directly importable |
|
Circuit Protection |
Differential circuit breaker, the entire equipment complies with CE standards |
|
Power supply |
AC 230V 50/60Hz 1000W |
|
Dimensions |
With crate : L1920 × W1510 × H1450 mm |
|
|
Machine only : L1470 × W1480 × H1640 mm |
|
Equipment weight |
Within packing crate : 1300 kg |
|
|
Machine only : 850 kg |
