TechWin CAM-30 Multi-Function Hybrid THT Insertion Machine

Multi-Function Automatic Insertion Machine for Odd-Form Components

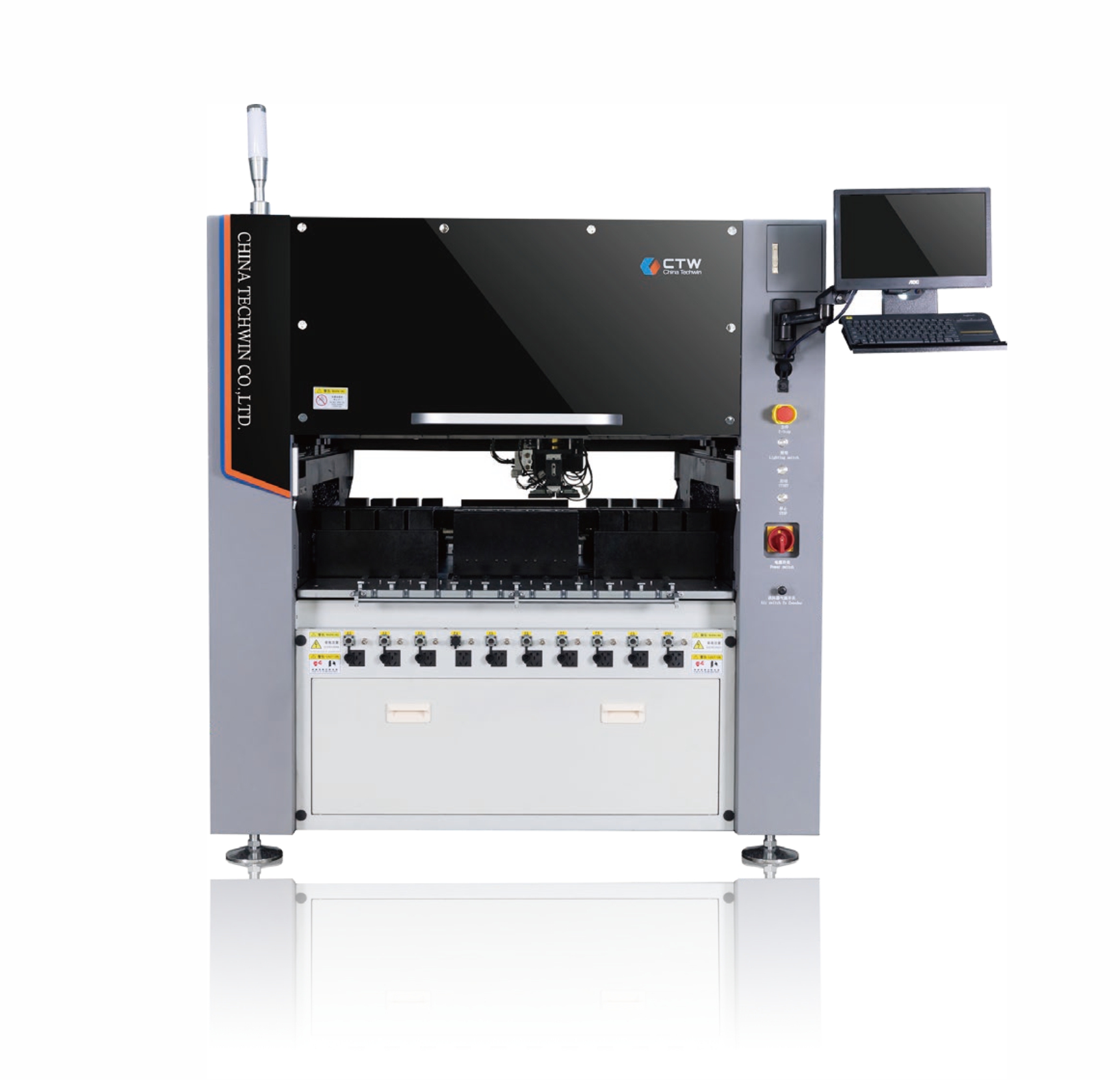

TechWin CAM-30 Multi-Function Insertion Machine

The TechWin CAM-30 is a multi-function automatic insertion machine particularly suitable for small and medium batch production with many different types of odd-form components. It features 2 grippers and large feeder capacity, making it ideal for flexible manufacturing needs.

Key Features

Y-axis dual-drive gantry – faster speed and higher precision
Modular circuits – faster troubleshooting
Jam / material shortage alarm
Automatic insertion hole searching and adjustable speed
Intelligent avoidance and slow drop function
Insertion force alarm
Automatic material replenishment and bad material rejection
Standard tape cutting function (5S)
Mark visual localization and simultaneous pickup/photo
Multi-privilege system and visually assisted programming
Automatic production data statistics

Technical Specifications

Model	CAM-30
Machine Size	1600 × 1580 × 1670 mm
Machine Weight	1450 kg
Power Supply	220V, 50-60Hz
Total Power	< 4 kW
Air Supply	0.5-0.7 MPa
Air Consumption	<50 L/min
PCB Size	50×50 – 450×550 mm
Number of Grippers	2
Insertion Precision	±0.05 mm
Insertion Speed	Theoretical: 2 s/pc
