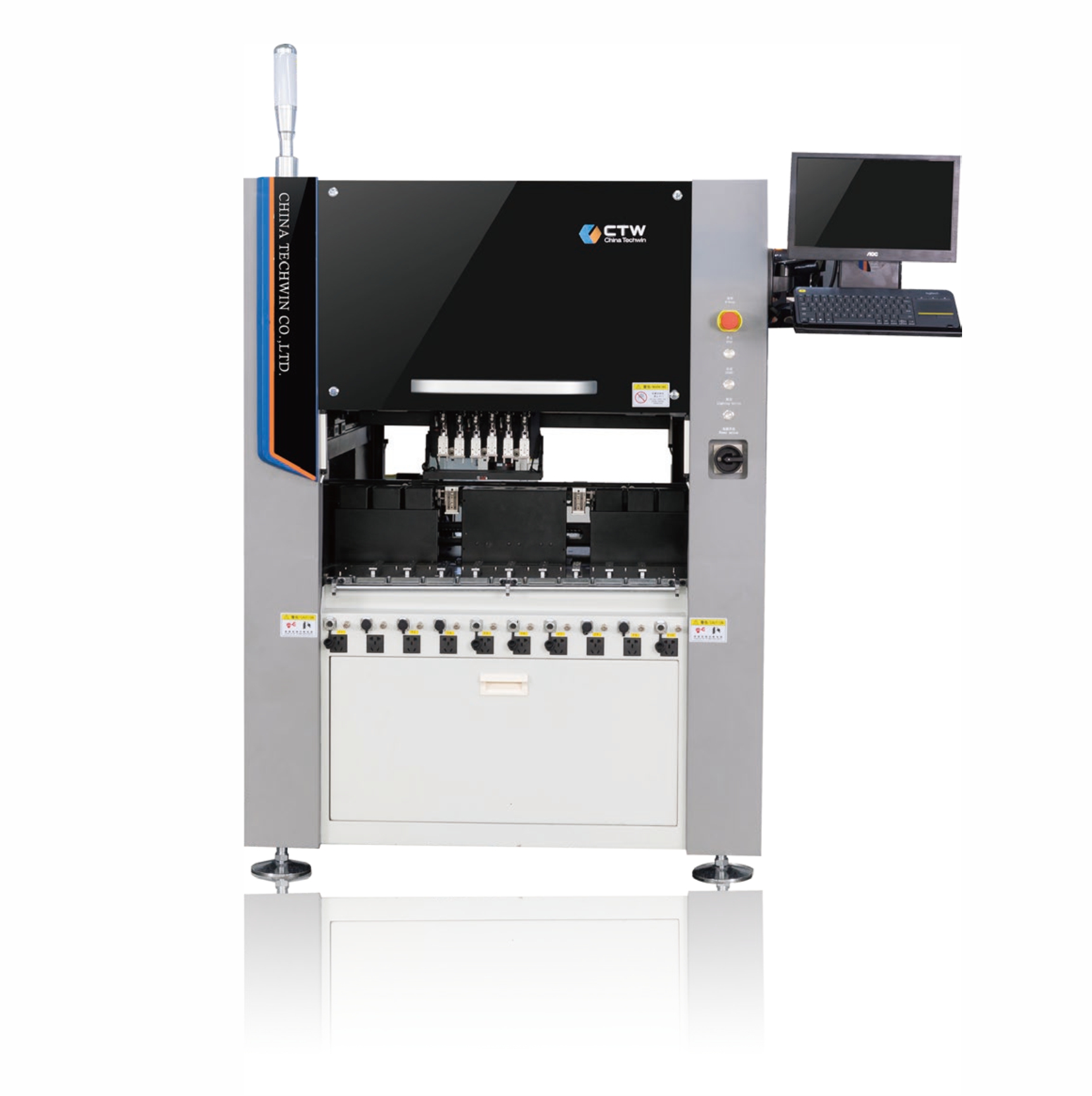

High-Precision Automatic Insertion Machine for Odd-Form Components
The TechWin CAM-20M is a high-performance automatic insertion machine designed for odd-form / special-shaped components. It features a dual-drive gantry on the Y-axis, advanced CCD vision system and intelligent functions for high-speed, high-accuracy production.
Key Features
Y-axis dual-drive gantry – faster speed and higher precision
Modular circuits – faster troubleshooting
Jam / material shortage alarm – increases equipment availability
Automatic electrical value checking before insertion – prevents machine crashes
Automatic insertion hole search, adjustable speed, flexible production
Intelligent avoidance function – handles dense production characteristics
Intelligent slow drop – reduces jumping parts and improves insertion quality
Insertion force alarm – improves quality and protects material
No downtime during material replenishment – increases equipment availability
Automatic component replenishment – intelligent production
Bad material rejection – reduces insertion defects
Standard tape cutting function – easy 5S maintenance
Mark visual localization – higher insertion recognition accuracy
Simultaneous pickup and simultaneous photo – more efficient insertion
