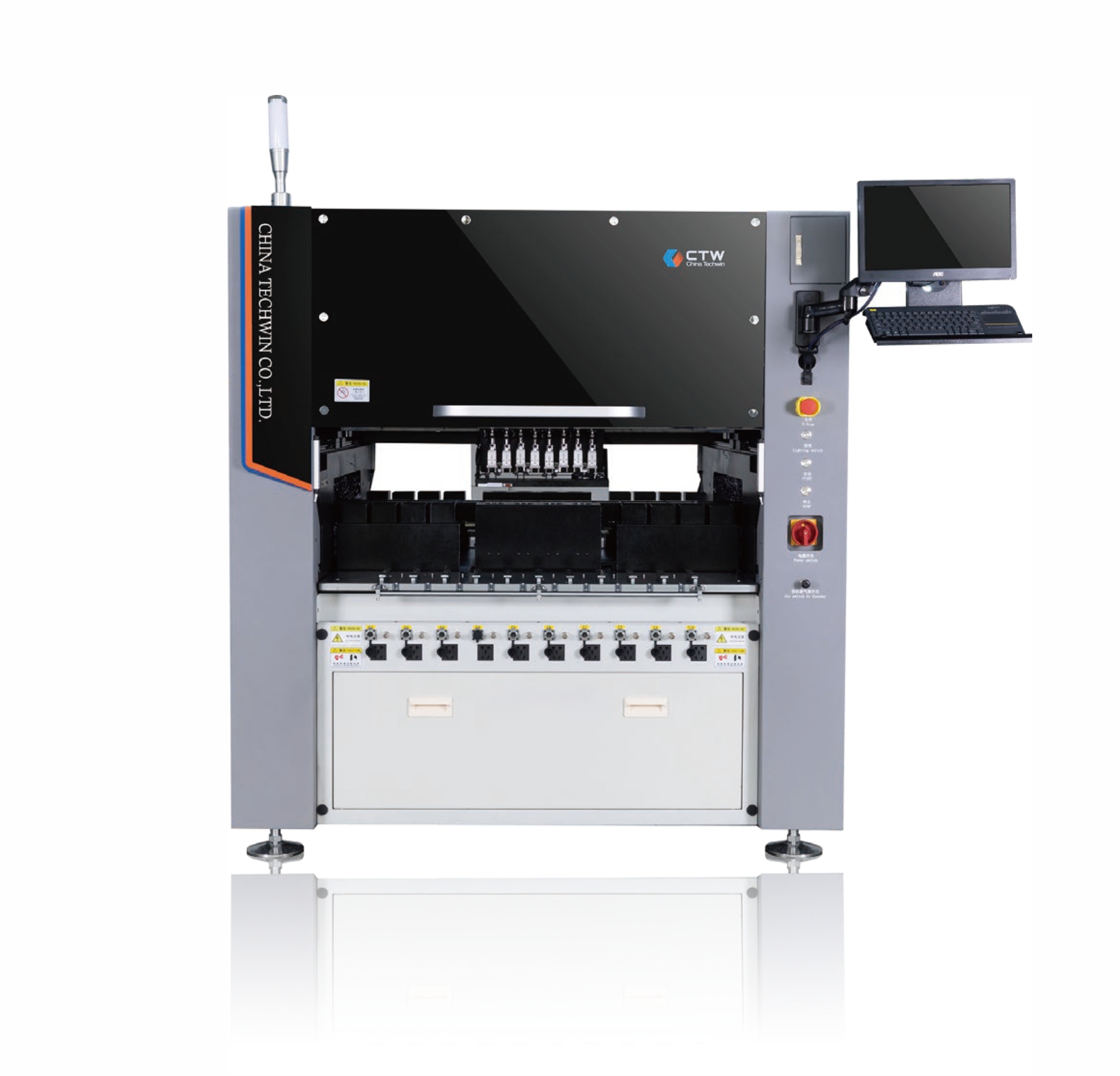

High-Precision Automatic Insertion Machine for Odd-Form Components
The TechWin CAM-20 is a high-performance automatic insertion machine designed for odd-form / special-shaped components. It features a dual-drive gantry on the Y-axis, advanced CCD vision system, and intelligent functions for high-speed, high-accuracy production.
Key Features
Y-axis dual-drive gantry for faster speeds and higher precision
Modularized circuits for faster troubleshooting
Jams / out-of-feed alarms to improve equipment availability
Self-checking of electrical values before insertion to avoid equipment crashes
Automatic insertion hole searching, adjustable insertion speed, flexible production
Intelligent circumvention to address intensive production characteristics
Intelligent slow drop, reduce jumping parts to improve the quality of the plug-in
Insertion force alarm to improve insert quality and avoid material damage
No downtime for refilling, increasing equipment availability
Automatic replenishment of inserts, intelligent production
Bad throw material, reduce plug-in defects
Taping Fiducials come standard with a cut tape function for easy 5S care
Visual localization of Mark with higher accuracy of plug-in recognition
Simultaneous pickup and simultaneous photo, plug-in more efficient
Multi-privilege management to prevent personnel misuse
Visually assisted programming to enhance ease of programming
Automatic statistics of production data, digitalized production
Technical Specifications
Model
CAM-20
Machine Size
1600 × 1600 × 1700 mm
Machine Weight
1500 kg
Power Supply
220V, 50-60Hz
Total Power
<4 kW
Air Supply
0.5-0.7 MPa
Air Consumption
<50 L/min
Noise
<75 dB
PCB Size
Standard: 70×70 – 450×550 mm
Custom: up to 650×610 mm (2-stage)
Insertion Precision
±0.05 mm
Insertion Speed
Theoretical: 0.52 s/pc (not including PCB transport time)
