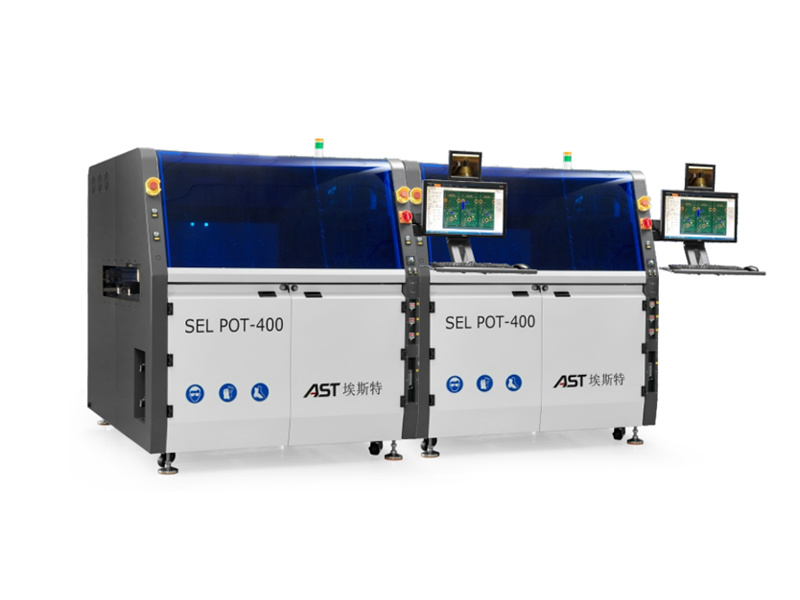

AST SELPOT-400 In-line Selective Wave Soldering Machine

In-line Selective Wave Soldering Machine – Complete Process in a Single Module

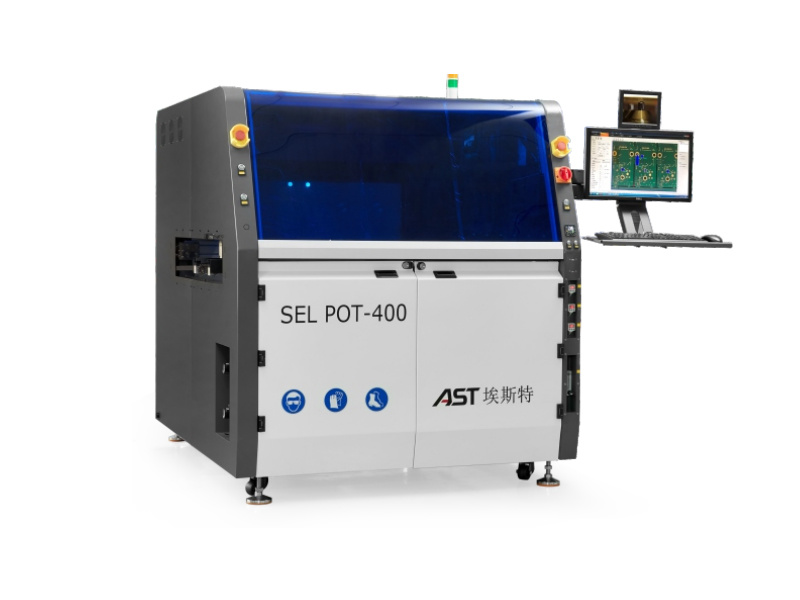

AST SELPOT-400 Selective Wave Soldering Machine

The AST SELPOT-400 is a fully online selective wave soldering system that integrates flux spraying, preheating and soldering in one compact module. It is excellent for medium to high volume production where high quality standards and flexibility are required.

Product Advantages

Fully functional: flux spraying + preheating + soldering in one module
High precision: soldering accuracy up to ±0.05 mm
High flexibility: selectable flux spraying only or soldering only mode
Low energy and flux consumption, low slag formation
Optional: single or double solder pot
Online CCD camera programming – fast and simple
Automatic Mark point positioning and wave height correction

Main Technical Parameters

Model	SELPOT-400 (Online)
Machine Size	1520mm (W) × 1650mm (D) × 1650mm (H)
Total Power	18 kW
Power Supply	3 phase, 5 wire, 380V 50Hz
Air Supply	0.4-0.6 MPa
PCB Size	Max. L450 × W400 mm
Solder Pot	Single or double (optional)
