TechWin CAM-18A Automatic Hybrid THT Insertion Machine

Automatic THT Component Insertion Machine – High Precision and Efficiency

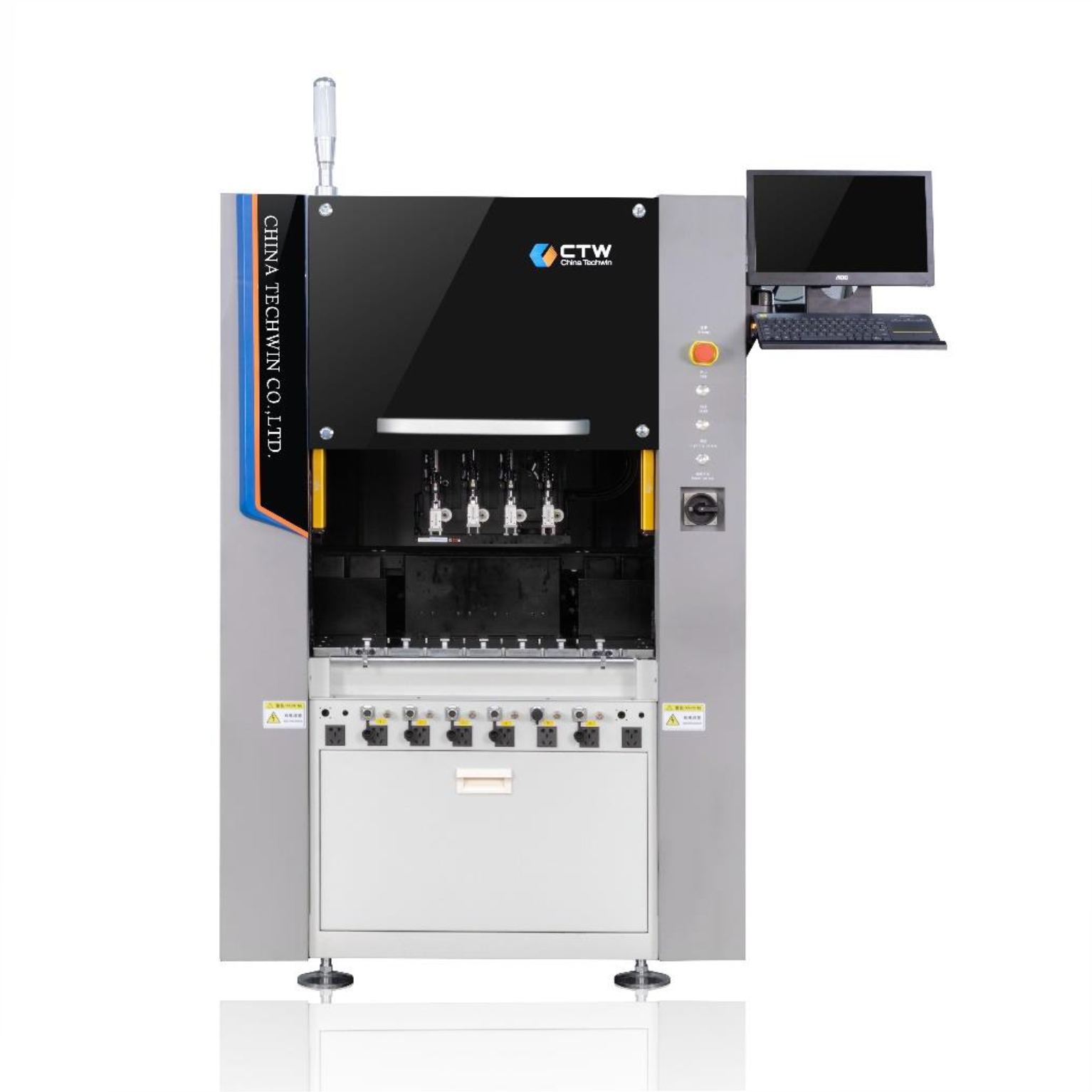

TechWin CAM-18A Odd-form Insertion Machine

The TechWin CAM-18A is a high-precision automatic odd-form component insertion machine with dual-drive gantry on the Y-axis, CCD vision system and intelligent functions. It is excellent for the precise insertion of complex components in electronics manufacturing.

Key Features

Y-axis dual-drive gantry – faster speed and higher precision
Modular circuits – faster troubleshooting
Jam / material shortage alarm – increases equipment availability
Automatic electrical value checking before insertion – prevents machine crashes
Automatic insertion hole search, adjustable speed, flexible production
Intelligent avoidance function – handles dense production characteristics
Intelligent slow drop – reduces jumping parts and improves insertion quality
Insertion force alarm – improves insertion quality and protects material
No downtime during material replenishment – increases equipment availability
Automatic component replenishment – intelligent production
Bad material rejection – reduces insertion defects
Standard tape cutting function – easy 5S maintenance
Mark visual localization – higher insertion recognition accuracy
Simultaneous pickup and simultaneous photo – more efficient insertion
Multi-privilege management – prevents personnel misuse
Visually assisted programming – easier programming
Automatic production data statistics – digitized production

Technical Specifications

Model	CAM-18A
Machine Size	1500 × 1650 × 1750 mm
Machine Weight	1350 kg
Power Supply	220V, 50-60Hz
Power Consumption	< 4 kW
Air Supply	0.5-0.7 MPa
Air Consumption	<50 L/min
Noise Level	<75 dB
PCB Size	50×50 – 320×380 mm
Insertion Precision	±0.05 mm
Insertion Speed	Theoretical value: 0.52 s/pc (does not include PCB transport time)

Our Advantages

Premium components (THK screws, rails, SMC pneumatics, Panasonic servo, etc.)
Long-life cabling
Laser + CCD flying camera – multiple cameras, multiple grippers working simultaneously
Unique algorithms for DIP components
Special functions for different industries
High precision and CPK value
Material monitoring system – one person can operate multiple machines
