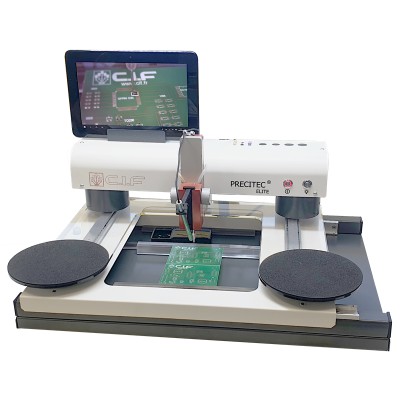

PRECITEC ELITE SMD Manipulator & Syringe Dispenser

Professional Manual SMD Placement and Dispensing Station for Prototyping and Small Series Production

The PRECITEC® ELITE is an ergonomic, high-precision manual SMD component placement and dispensing system. It was specifically developed for prototyping, laboratory work, and small to medium series electronic assembly.

Key Features

Large working area: 300 × 500 mm
Ergonomic design – suitable for both right and left-handed use
360° rotatable, sensitive vacuum head
Built-in LED lighting in the arm
Integrated vacuum pump
Magnetic PCB holders
12 spring-loaded SMD storage boxes (standard)
Syringe holder for dispensing (flux, paste) – standard accessory
Component range: from 0402 to QFP (0.65 mm accuracy)
Option: color camera with USB connection

Technical Specifications

Working Area	300 × 500 mm
Placement Accuracy	0.65 mm (0402 – QFP), 0201 optional
Placement Rate	Approx. 900 components / hour
Dimensions (W × D × H)	600 × 500 × 300 mm
Weight	15.5 kg
Power Supply	230 V – 50/60 Hz
Operating Temperature	15 – 40 °C
