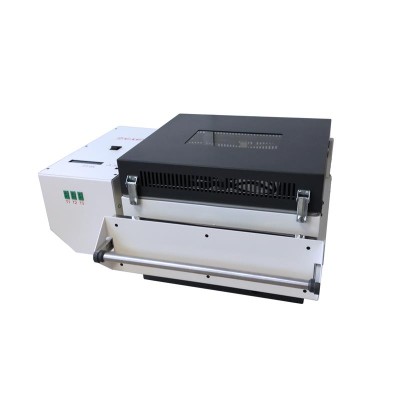

CIF FT05 Advanced Forced Convection Reflow Oven

Professional Reflow Oven for Prototypes and Small Series • Lead-Free Compatible

Overview

The **FT05 Advanced** is a new generation professional forced convection reflow oven designed for prototypes and small series production. It offers excellent thermal performance with uniform heat distribution, making it ideal for high-temperature lead-free soldering processes.

Compact yet spacious working area (350 × 400 mm), large viewing window, and advanced SMTIX 2.0 software control.

Key Features

Forced convection for uniform temperature distribution

Working area: 350 × 400 mm

Large viewing window for complete process monitoring

SMTIX 2.0 control software included (up to 10 temperature steps)

Internal or external thermocouple for precise profile regulation

10 programs memory as standard

Compatible with high-temperature lead-free alloys

Fully secure oven with double glass and safety features

Technical Specifications

Parameter	FT05 ADV	FT05 ADV AUTO	FT05 ADV PREMIUM
Working area	350 × 400 mm	350 × 400 mm	350 × 400 mm
Heating elements	4 × 1 kW	4 × 1 kW	4 × 1 kW
Max. temperature	300°C	300°C	300°C
Control software	SMTIX 2.0 included	SMTIX 2.0 included	SMTIX 2.0 included
Auto exhaust valve	No	Yes	No
Filtration unit	Option	Option	Included
Thermocouples included	1	1	3
Dimensions (oven)	730 × 640 × 380 mm	730 × 640 × 380 mm	730 × 640 × 380 mm
Weight	39 kg	40 kg	52 kg
Power supply	230 V – 50/60 Hz	230 V – 50/60 Hz	230 V – 50/60 Hz
