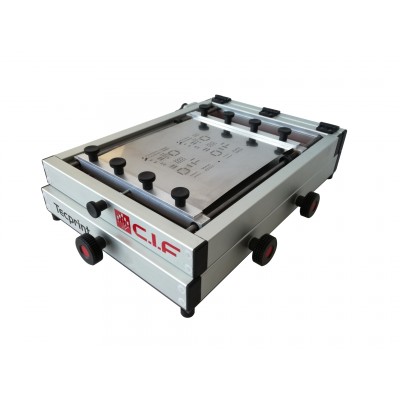

CIF TECPRINT 500 / 700 Manual Stencil Printer

Compact Manual Stencil Printers for SMD Paste Application – Ideal for Prototyping and Small Series

The TECPRINT 500 and 700 are compact manual stencil printers designed for quick and accurate deposition of soldering paste and other viscous materials. Thanks to the innovative auto-tensioning frame system, stencils can be changed in seconds without needing dedicated frames.

Key Features

Compact and robust design for laboratory and small production use
Fast stencil change with original auto-tensioning system
Precise X, Y and Theta alignment via side adjustment screws
High printing accuracy suitable for fine-pitch SMD components
Easy to use and maintain – ideal for prototyping
Low cost of ownership

Technical Specifications

Parameter	TECPRINT 500	TECPRINT 700
Model	TECPRINT 500	TECPRINT 700
Reference	V900016	V900017
Max Stencil Size	220 × 320 mm	320 × 480 mm
Min Stencil Size	50 × 50 mm	50 × 50 mm
Recommended Stencil Size	210 × 310 mm	300 × 470 mm
Max PCB Size	200 × 270 mm	300 × 400 mm
Min PCB Size	30 × 50 mm	30 × 50 mm
Dimensions (W×D×H)	315 × 550 × 230 mm	415 × 700 × 230 mm
Net Weight	6 kg	9 kg
