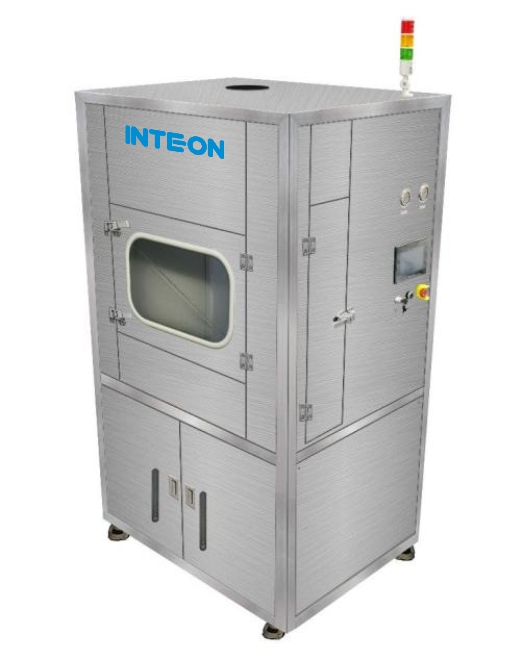

The IE-4750PSW is a fully automatic water-based stencil cleaning machine designed for high-efficiency cleaning of SMT stencils, scrapers and misprint boards. It integrates cleaning, rinsing and drying in one compact unit.
Key Features
Water-based cleaning process with high-pressure scanning spray technology for thorough contaminant removal
Multi-functional design: cleans steel meshes, scrapers and misprint boards in one machine
High-efficiency hot air drying with built-in high-pressure fan for fast and thorough drying
Multi-stage recycle filtration system with independent three-stage filters for cleaning agent and rinse water
PLC intelligent control with user-friendly touchscreen interface
One-touch start, fully automatic operation
Entire machine made of high-quality stainless steel (SUS304)
Technical Specifications
Model
IE-4750PSW
Applicable Stencil Size
750(L) × 750(W) × 40(H) mm
Maximum Tank Capacity
50 L
Spray Cleaning Time
5–10 min (depending on cleaning agent)
Rinsing Time
2–5 min
Drying Time
3–8 min
Power Supply
3 phase, 5 wire, AC 380V, 50Hz, 12 kW
Air Supply
0.4–0.7 MPa, Φ12 mm
Machine Size
L1120 × W880 × H2060 mm
Machine Weight
230 kg
Structure & Functions
Spray Chamber & Liquid Storage Tanks – Made of SUS304 stainless steel with multi-stage filtration
Spray & Rinsing System – High-pressure scanning nozzles with front-to-back and vertical spraying
Drying System – High-pressure fan with air knife for efficient moisture removal
Mobile System – Horizontal scanning movement for complete coverage
Control System – PLC + 7" touchscreen with manual and automatic modes
