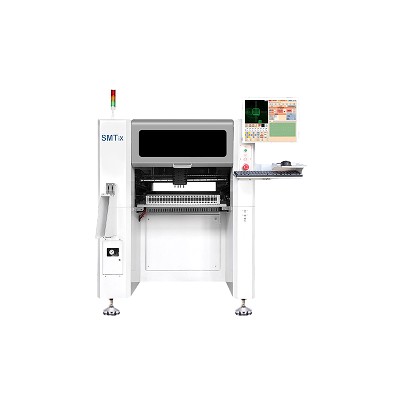

The SMT MS4T 64 NX is an in-line SMD Pick & Place system.
It is the most efficient in its category in placement, programming speed and feeder capacity.
It can accommodate up to 64 NXT type feeders.
The placement accuracy is 0.05mm with a maximum capacity of 11,000 components per hour, making it an ideal machine for producing small series.
2 reels support trolleys are supplied with the machine
HIGHLIGHTS
Placement speed and feeder capacity
The machine is supplied with 6 cameras: 1 for fiducial detection, 4 high-speed cameras for placement nozzles and a high-precision camera for chips
Works under Windows® environment
The software integrates a component library
The software optimizes loading and routing automatically
|
Model |
SMT MS4L 64NX |
|
Placement accuracy |
0.05mm |
|
Repeatability Accuracy |
0.05mm |
|
Positioning accuracy |
0.01mm |
|
Continuous operating time |
Can operate continuously for >24 hours without stopping |
|
Placement speed |
8000-11000 cph |
|
Placement area |
50x50-410x360mm |
|
Placement range |
Compatible with components of type 0201, 0402, 0603, 0805, 1206, LEDs, diodes, transistors, SOT, and BGA up to 30*30 mm. For components with a pin pitch greater than 0.3 mm, such as GFP, BGA, etc., placement of non-standard components is possible with visual customization. |
|
Placement head system
|
Number of placement heads |
4 |
|
|
Nozzle types |
Compatible with JUKI nozzles |
|
|
Component angle range |
±180° |
|
|
Maximum component height |
=20mm |
|
|
Pickup method |
Piano type |
|
Feeding System |
feeder positions |
68 positions (based on 8 mm feeders) |
|
|
Feeder type |
Electric feeders, vibrating feeders, IC trays, etc. |
|
|
Compatible feeder types |
NXT feeders |
|
|
IC tray positions |
1 tray |
|
|
Safety system |
Feeder lift alarm function |
|
|
Loading method |
Automatic material distribution, with automatically located pickup coordinates |
|
PCB Conveyor System |
PCB thickness |
=3 mm; in automatic mode, a processing border of 3-5 mm is required |
|
|
Track adjustment method |
electric adjustment via software |
|
|
Transport mode |
Default from left to right, supports connection on both sides, with three-stage transport |
|
|
Safety system |
Antistatic conveyor, board transfer sensors, supports MES signals |
|
Air System |
Vacuum source |
Vacuum pump |
|
|
Vacuum mechanism |
High-speed vacuum break valve |
|
|
Air pressure |
0,5-0,7 MPa |
|
|
Air source requirements |
Oil-water separation device, requires external connection of = 60 L, dust filtration, and air pressure stabilization device |
|
Motion Control and Programming System |
Operating system |
Windows-based |
|
|
Control unit |
Industrial PC with high-performance Intel processor |
|
|
Drive system |
High-speed DSP drive, AC servo motor |
|
|
Safety system |
Emergency stop button, tri-colour alarm light, slow/stop recognition upon cover opening |
|
|
XY guide rail |
Linear guide rail + precision ball screw |
|
|
XY motion mode |
Optimized curve acceleration/deceleration, linear interpolation linkage, integrated interpolation algorithm |
|
|
Motion protection |
High-durability cable carriers and flexible cables |
|
Recognition System |
Recognition equipment |
1 fiducial positioning camera, 4 high-speed recognition cameras, 1 high-precision camera |
|
|
Monitor |
17-inch industrial control display |
|
|
Image capture method |
Centring visual recognition |
|
|
Recognition method |
Simultaneous recognition on 4 heads |
|
|
Fiducial Recognition |
Manual/automatic positioning |
|
|
Correction Functions |
Automatic missing component correction, automatic component angle correction, automatic invalid component rejection |
|
|
Programming method |
Pick&place file import, synchronized with the component library, optimal trajectory planning, optimal path planning |
|
|
Compatible file formats |
CSV/TXT files directly importable |
|
Circuit Protection |
Differential circuit breaker, the entire equipment complies with CE standards |
|
Power supply |
AC 230V 50/60Hz 1000W |
|
Dimensions |
With packaging L1260 × W1450 × H1640 mm |
|
|
Machine itself L1160 × W1340 × H1450 mm |
|
Equipment weight |
With packing 780 kg |
|
|
Machine itself 690 kg |
