INTEON WTR-450 Wave Solder

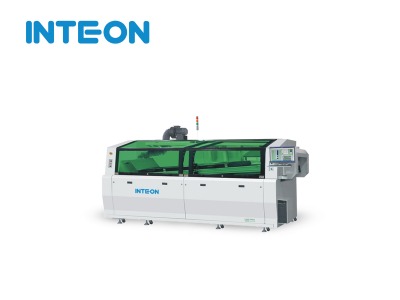

INTEON WTR-450 – Dual Wave Lead-Free Soldering Machine

Reproducible Quality • High Throughput • Low Cost of Ownership

Overview

The INTEON WTR-450 is a robust dual wave lead-free soldering system designed for high-volume production. It combines reliable performance, excellent solder quality and low operating costs, making it an ideal choice for SMT and THT manufacturing lines.

Key Features

Dual wave for standard and high throughput operation
High capacity titanium alloy solder pot
Built-in flux spraying system with self-cleaning nozzle
Forced convection hot air preheating zone with independent temperature control
Full titanium alloy conveyor fingers suitable for lead-free soldering
User-friendly HMI interface
Low cost of ownership and comprehensive warranty
Nitrogen system, center support and PC control (optional)

Technical Specifications

			Parameter
			Value

			Dimensions (L×W×H) mm
			4430×1620×1710

			Weight
			2300 kg

			Power Supply
			3P5W, 380V/220V, 50/60Hz 63A

			Startup Power
			26 kW

			Operating Power Consumption
			12 kW

			Control System
			Siemens PLC + Computer

			Solder Pot Material
			Titanium Alloy

			PCB Width
			50 – 450 mm

			Conveyor Speed
			0 – 2000 mm/min

			Conveyor Angle
			4° – 7°

			Preheating
			Hot air, 1800 mm length

Parameter	Value
Dimensions (L×W×H) mm	4430×1620×1710
Weight	2300 kg
Power Supply	3P5W, 380V/220V, 50/60Hz 63A
Startup Power	26 kW
Operating Power Consumption	12 kW
Control System	Siemens PLC + Computer
Solder Pot Material	Titanium Alloy
PCB Width	50 – 450 mm
Conveyor Speed	0 – 2000 mm/min
Conveyor Angle	4° – 7°
Preheating	Hot air, 1800 mm length
