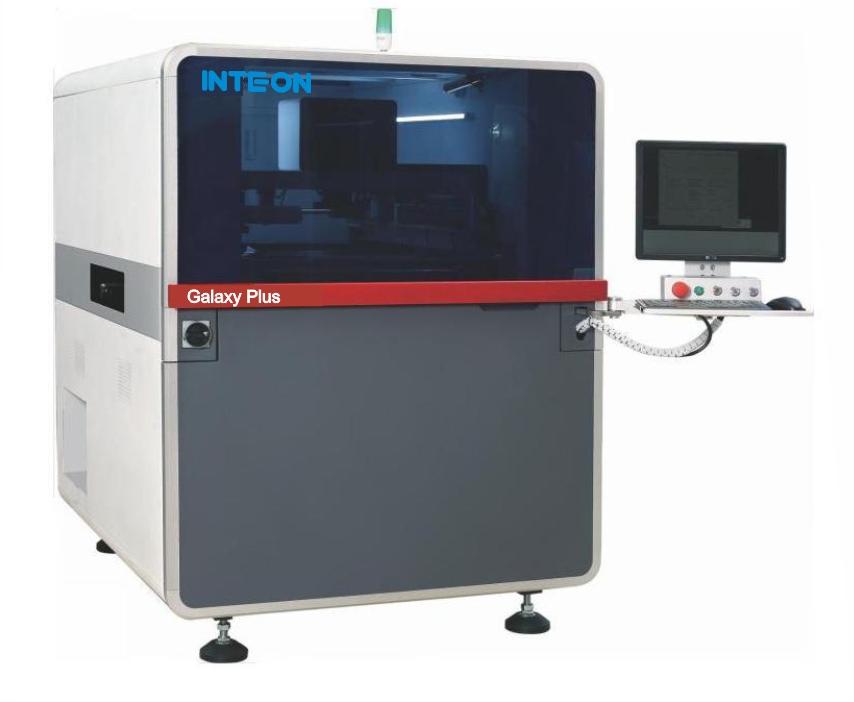

Fully Automatic SMT Solder Paste Printer Galaxy Plus
Best Price and Value Ratio
INTEON Fully Automatic Visual Solder Paste Scereen Printer/ SMT Stencil Printer
Simple and reliable structure, accurate positioning and easy to adjust, It can quickly achieve different thickness of the PCB board PIN pin height adjustment of the automatic adjustment. The spray nozzle makes the cleaning liquid evenly sprinkled on the wiping paper, and the arc-shaped rubber wipe board is soft, antiwear and antirust, clean thoroughly bidirectionally.
1. Accurate optical positioning system
Four way light source is adjustable, light intensity is adjustable, light is uniform, and image acquisition is more perfect; Good identification (including uneven mark points), suitable for tinning, copper plating,Gold plating, tin spraying, FPC and other types of PCB with different colors.
2. High efficiency and high adaptability stencil cleaning system
The new wiping system ensures full contact with the stencil ; three cleaning methods of dry, wet and vacuum, and free combination can be selected; soft wear-resistant rubber wiping plate, thorough cleaning, convenient disassembly, and universal length of wiping paper.
3. Intelligent squeegee system
Intelligent programmable setting, two independent direct motors driven squeegee, built-in precise zero pressure detection system.
4. Simple and reliable PCB positioning system
The platform height is automatically calibrated according to PCB thickness setting, which is intelligent, fast, simple and reliable in structure.
5. Printing axis servo drive
The Squeegee Y axis servo with screw drive,higher accuracy,more stable operation, extend the service life,to provide a good printing control platform for customers
6. 2D solder paste printing quality inspection and SPC analysis
2D function for offset,less tin, leakage,tin connection and other printing problems can be quickly detected, the detection point arbitrary increase;The SPC software can analyze the samples collected by the machine CPK index ensures printing quality.
Technical Parameters:
|
PCB parameters |
|
|
Maximum board size(X x Y) |
450mm x 350mm |
|
Minimum board size(X x Y) |
50mm x 50mm |
|
PCB thickness |
0.4mm~6mm |
|
Warpage |
≤1%Diagonal |
|
Maximum board weight |
3Kg |
|
Board margin gap |
Configuration to 3mm |
|
Maximum bottom gap |
20mm |
|
Transfer speed |
1500mm/s(Max) |
|
Transfer height from the ground |
900±40mm |
|
Transfer orbit direction |
Left-Right,Right-Left,Left-Left,Right-Right |
|
Transfer mode |
One stage orbit |
|
PCB damping method |
Programmable flexible side pressure + Adaptive PCB board thickness + Edge lock base clamp |
|
Support method |
Magnetic thimble, Equal high block,etc.(Optional:1.Vacuum Chamber;2.Special workpiece fixture) |
|
Printing parameters |
|
|
Printing head |
Floating intelligent printing head (two independent direct connected motors) |
|
Template frame size |
470mm x 370mm~737 mm x 737 mm |
|
Maximum printing area(X x Y) |
450mm x 350mm |
|
Squeegee type |
Steel scraper/Glue scraper(Angel 45°/50°/60° matching the printing process) |
|
Squeegee length |
300mm(optional with length of 200mm-500mm) |
|
Squeegee height |
65±1mm |
|
Squeegee thickness |
0.25mm Diamond-like carbon coating |
|
Printing mode |
Single or double scraper printing |
|
Demoulding length |
0.02 mm - 12 mm |
|
Printing speed |
0 ~ 200 mm/s |
|
Printing pressure |
0.5kg - 10Kg |
|
Printing stroke |
±200 mm (From the center) |
|
Cleaning parameters |
|
|
Cleaning mode |
1. Drip cleaning system; 2. Dry, wet and vacuum modes |
|
Length of cleaning and wiping board |
380mm(optional with 300mm, 450mm, 500mm) |
|
Image parameters |
|
|
Field of view |
8mm x 6mm |
|
Platform adjustment range |
X:±5.0mm,Y:±7.0mm,θ:±2.0° |
|
Benchmark point type |
Standard shape benchmark point(SMEMA standard),solder pad/openings |
|
Camera system |
Independent camera,upwards/downwards imaging vision system |
|
Performance parameters |
|
|
Repetition precision of image calibration |
±10.0μm @6 σ,Cpk ≥ 2.0 |
|
Repetition precision of printing |
±20.0μm @6 σ,Cpk ≥ 2.0 |
|
Cycle time |
<7s(Exclude printing and cleaning) |
|
Product changeover |
<5mins |
|
Equipment |
|
|
Power requirements |
AC220V±10%,50/60HZ,15A |
|
Compressed air requirements |
4~6Kg/cm2 |
|
Operating system |
WIN7 |
|
External dimension |
1152mm(L) x 1415mm(W) x 1540mm(H)(Without light,monitor and keyboard) |
|
Machine weight |
Around 1000Kg |
