Features:
⚫ In-line milling cutter separator，automatic board loading, automatic cutting, automatic
board unloading, can greatly improve production efficiency and save labor cost.
⚫ The system equipped CCD visual alignment system to improve cutting accuracy and
efficiency and prevent misoperation.
⚫ X-axis and Y-axis use high precision dust-proof modules to ensure strong cutting
stability and high precision.
⚫ The standard laser displacement device imported from Japan detects whether the
PCBA is flat.
⚫ Automatic reclaiming adopts vacuum suction cup pick and place transplanting.
⚫ The independent CNC special motion controller is used to integrate the control part, with
strong loop control stability, high precision, fast response, and transmission, and strong
anti-interference
⚫ The equipment operation adopts Chinese/English interface conversion, and the
software design is more user-friendly, which is easy for engineers to operate.
⚫ It has the functions of straight line, arc and irregular edge cutting, and realize the function
of broken knife detection and sliding knife detection.
⚫ The automatic tool change high speed spindle(max: 8000rpm) imported from Germany
Sycotec is adopted, which has low cutting stress, high accuracy, increased cutting
efficiency, and automatic tool change to achieve full automation

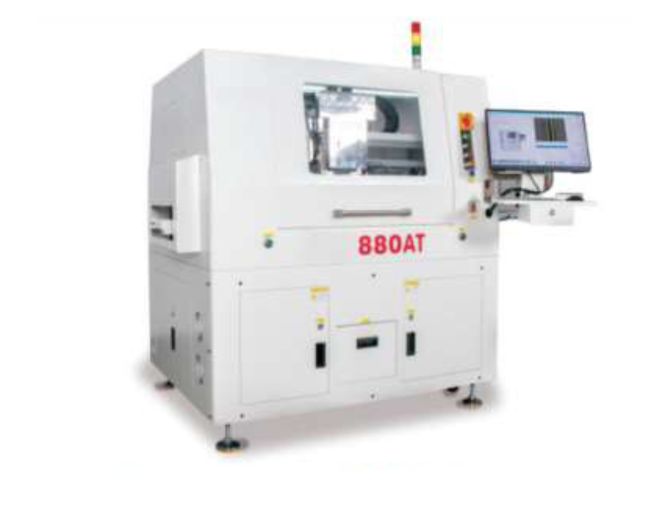

In-Line PCB Router broshure
Configurations:
1. Jaw pickup structure
The product will be divided into board fixture clamping placed on the processing platform
board, processing is completed again the board fixture clamping placed on the track into the
lower part of the process.
2. Specialized product depaneling fixtures into the track way
3. Specialized product slitting jig with rail-type discharge.
After the cutting of the products of the in-line automatic board separating machine is
completed, the material clamping claw will take the whole product fixture and place it on the
discharge track to convey the next production process.
4. Automatic tool change method
1. Adopt automatic tool changer imported German spindle. Save time, realize automation,
reduce human factors, high precision and stability.
2. Built-in five groups of milling cutter tool magazine, easy to automatically change the milling
cutter, to meet the needs of sub-panel processing.
5. Vacuum suction cup pickup method structure
1. Pick and place device: automatic loading and unloading (modular vacuum suction claw,
vacuum device, can be independently controlled)
2. Transfer structure: X2 axis movement Z2, Z3 axis suction, AC servo motor control.
3. Pick-up board speed: 0-1000mm/sec (can be set)
6. Specialized product fixture pallet discharge method
Vacuum suction cups pick up the material axis of the cut products one-time vacuum suction
placed special product fixtures conveyed to the next step of the production process.
