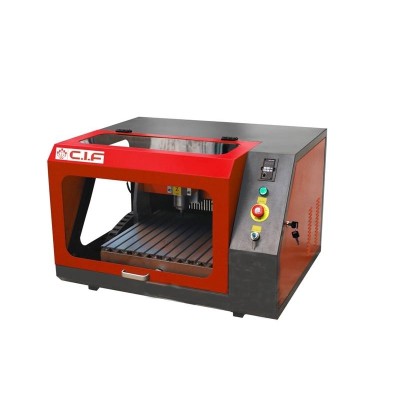

CIF 3D Technodrill 3 – 3-Axis CNC Rapid Prototyping & PCB Production Machine

PCB CNC Production Centre – Versatile 3-Axis Milling & Drilling System

Overview

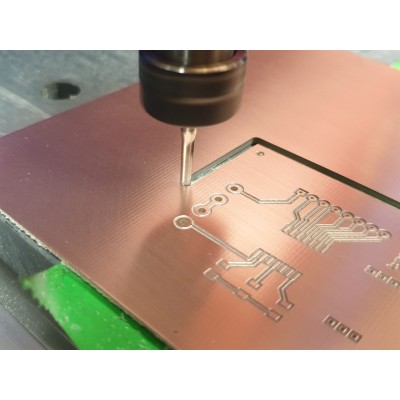

The Technodrill 3 is the ultimate versatile tool for electronic laboratories and small-to-medium series production. It combines high precision CNC milling, drilling, depanelizing, engraving, and more in a single compact platform.

Designed and manufactured in France by CIF, it offers immediate learning curve and professional industrial performance.

Key Features

3-axis interpolation with true 3D capability
Z-axis clearance: 90 mm
Working area: 390 × 315 × 60 mm (Technodrill 3)
High-frequency spindle: 800 W – 10,000 to 24,000 rpm
Resolution: 1.5 µm (0.059 mil)
Repeatability: ± 5 µm (0.2 mil)
Compatible with HPGL, ISO, EXCELLON, GERBER, GCODE, DXF and more
GALAAD 3 piloting software with lifetime free updates
Z-axis moving probe as standard
Protective cover + low-voltage LED lighting included

Technical Specifications

Parameter	Technodrill 3	Technodrill 3 XL
Interpolation	3 axes – 3D	3 axes – 3D
Z-axis free passage	90 mm	90 mm
Working area (X×Y×Z)	390 × 315 × 60 mm	385 × 580 × 60 mm
Table size	380 × 500 mm (grooved aluminium)	500 × 645 mm
Resolution	1.5 µm	1.5 µm
Repeatability	± 5 µm	± 5 µm
Spindle	800 W – 10,000 to 24,000 rpm	800 W – 10,000 to 24,000 rpm
Max. drilling speed	360 holes/min (Ø 0.8 mm)	360 holes/min
Min. track width	150 µm (5.9 mil)	200 µm (8 mil)
Min. isolation	150 µm (5.9 mil)	200 µm (8 mil)
Min. drill diameter	0.3 mm (12 mil)	0.3 mm
Max. travel speed	100 mm/s	100 mm/s
Noise level	< 65 dBA	< 65 dBA
Power supply	230 V – 50 Hz – 8 A	230 V – 50 Hz – 8 A
Net weight	76 kg	90 kg
Dimensions (L×W×H)	950 × 700 × 630 mm	950 × 1000 × 670 mm
